10s40 Diamond Polishing Wheel for Glass Rough Polishing

Overview

Basic Info.

Model NO.	HX08A
Circular Degree	<1
Technics	Sinter
Working Style	Surface Grinding
Product Name	Diamond Polishing Wheel
Usage	Mainly Used for Glass Polishing
Type	10s, Felt Wheel, Bd, Bk, Ce Wheel, X3000
Usuage	Glass Polishing
Transport Package	Carton, Box
Specification	44*44*22 17*17*12
Trademark	HX
Origin	Henan
Production Capacity	2222 Pieces Per Month

Product Description

Product Description

HNHONGXIANG glass diamond grinding wheels are manufactured by using high-quality diamond powder as the raw material. Precise dimensions, good sharpness, high efficiency, and long working life.Our glass wheels include full segmented, internal and external segmented, continuous grinding wheels, trapezoidal grinding wheel, 45°degree shape grinding wheel, bowl shape and OG shape grinding wheels, also various other customized shapes and sizes. Normally used for grinding architectural glass, bathroom glass, car glass, etc.

Product Information

Product Name	10S Glass Polishing Wheel
DISC TYPE	Cup	mesh number:	60#-320#
ABRASIVE	High-quality rare earth polishing powder	USE	Glass processing
WEIGHT	1kg	APPLICATION	Glass / Marble/Ceramic/Slate
For Machines	Bovone, Bottero, Bavelloni, Besana, Adelio Lattuada, Schiatti Angelo, Zafferani Glas, Intermac, etc.
Logo	Acceptable, can be lettering according to the customers' requirements.
Products Range	1. Synthetic diamond powder /natural diamond powder 2. Electroplated diamond grinding wheel /electroplated saw blade/ electroplated diamond disc 3. Resin bond diamond grinding wheel/ resin bond saw blade/ 4. Metal bond diamond grinding wheel/'metal bond saw blade 5. Vitrified bond diamond grinding wheel 6. Diamond Microdermabrasion tips 7. Diamond tools for Glass 8. Diamond tools for gemstone

This 10S polishing wheel is used for glass edging machine polishing, suitable for straight edge machine and double edge machine polishing.The specification of chamfer polishing wheel is 130*35*60, the specification of bottom edge polishing wheel is 150*40*70, and the grain size is 40#/60#/80#

Glass polishing wheel
Item	Diameter (mm)	Thickness(mm)	Hole (mm)
10S40 wheel	130	35	60
10S40 wheel	150	40	70
BD/BK wheel	100	15	22
BD/BK wheel	100	20	22
BD/BK wheel	100	25	22
BD/BK wheel	100	30	22
BD/BK wheel	150	15	22
BD/BK wheel	150	20	22
BD/BK wheel	150	25	22
BD/BK wheel	150	30	22
Felt wheel	150	35	70
X5000/X3000	150	40	70
Stone wheel	100	40	12
Stone wheel	130	40	12
Stone wheel	150	40	50
Cerium oxide wheel	150	40	70

Product Usage

Application:diamomd grinding wheels for straight line and bevelling machines,

double line machines,CNC machinesused for glasses, quartzs, stones,chinawares and etc.

OUR PRODUCT SERVICE FOR TECHNICAL GLASS-AUTOMOTIVE ,HOUSEHOLD APPLIANCE AND SOLAR
1.PERIPHERAL WHEELS:peripheral wheels for edge grinding of glass in automotive household appliance and solar industry2.DIAMOND DRILL-straight and countersink drills for automatic machines
FLAT GLASS-ARCHITECTURAL AND FURNITURE
1.CUP WHEEL-metal or resin bond cup wheels with continuous ,segmented and semi segmented rim,for flat edge grinders and beveling machine 2.peripheral wheel-metal bond trapezoidal and pencil edge peripheral wheel for automatic ,semi-automatic and manual machines

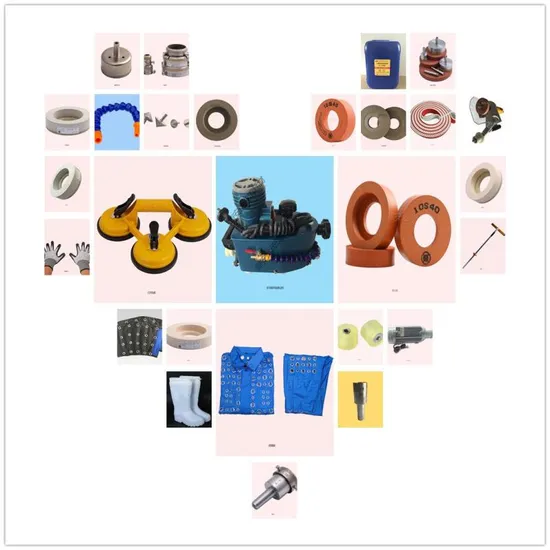

product Show

Customer Praise

Company Profile

Our company has three brands:HNHONGXIANG, DIAMONDWK, QEDIAMONDDIE HNHONGXIANG brand was established in 1990. And main products are synthetic diamond, diamond micron powder, diamond grinding wheels, diamond saw blades, diamond drill bits, diamond polishing pads, diamond lapping paste, etc.;
DIAMONDWK was established in 2000, And the main products are PDC cutter, PCD blanks, PCD cutting tools, PCBN insert, etc.
QEDIAMONDDIE began to produce wire drawing dies in 1983. And main products are shaped drawing dies, PCD wire drawing dies, natural diamond wire drawing dies, mono diamond wire drawing dies, and tungsten carbide wire drawing dies, nano coated diamond dies, etc.
